Texa Navigator Nano S2
Texa Navigator Nano S2 is simplest solution among the vehicle communication interfaces offered by Texa. Small, robust, lightweight and ergonomic, it has been specifically developed for the diagnostic operations in the Car environment.
$1,200.00
🚗 TEXA Navigator Nano S2 – Compact Automotive VCI
The Navigator Nano S2 is TEXA’s ultra-compact, high-performance VCI designed specifically for car diagnostics. Whether you’re in a high-volume shop or working mobile, the Nano S2 pairs seamlessly with TEXA’s IDC6 software to deliver fast, wireless access to vehicle systems, fault codes, service functions, and more.
📡 Features That Matter:
- ✅ Supports all major automotive brands with multi-brand coverage
- ✅ Works wirelessly over Bluetooth
- ✅ Compact size—perfect for mobile diagnostics and tight workspaces
- ✅ Powered by IDC6 software (license required, sold separately)
- ✅ Ideal for use with Axone tablets or Windows laptops
🧰 Who It’s For:
Independent shops, mobile techs, and auto pros looking for a lightweight VCI that doesn’t skimp on capability. Perfect for cars, light trucks, and crossover diagnostics.
📦 What’s Included:
- 📶 TEXA Navigator Nano S2 VCI
- 🔌 USB cable
- 📄 Quick start documentation
- ⚠️ Note: IDC6 car license sold separately
💡 Diagnose with Confidence

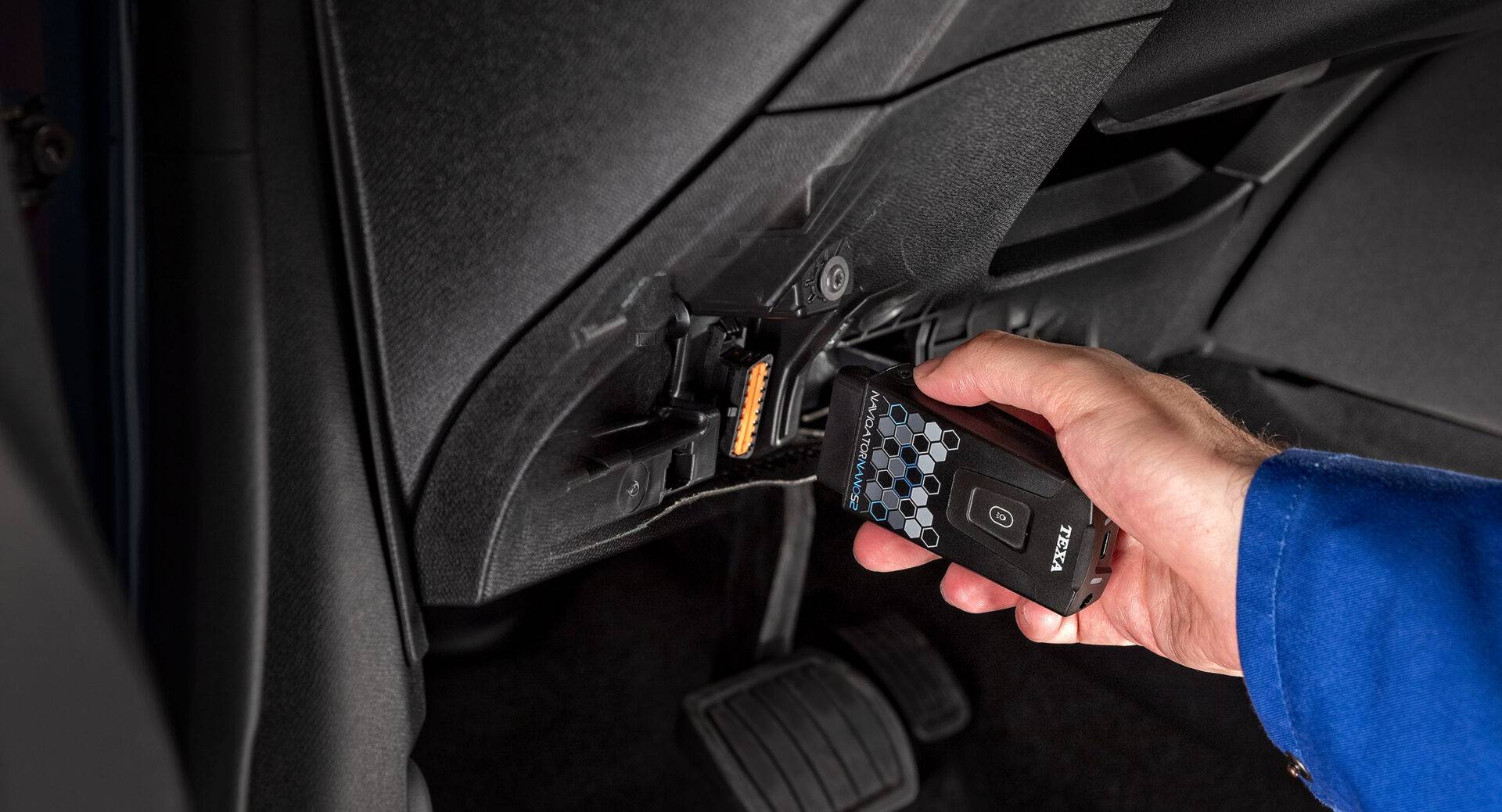

Pair the Nano S2 with your Axone tablet or Windows device and take control of diagnostics, coding, and service resets—without the clutter of large tools.
❓ Frequently Asked Questions
A: Most U.S., Asian, and European vehicles—cars, SUVs, and light trucks.
Q: Does this include software?
A: No. An active IDC6 car software license is required and sold separately.
Q: Is it only for TEXA tablets?
A: No. It can be used with Axone tablets or Windows-based laptops running IDC6.
Q: Can I use it for service resets and coding?
A: Yes. The Nano S2 supports full diagnostics including resets, calibrations, and coding functions.
Q: Is this good for mobile diagnostics?
A: Absolutely. Its compact size and wireless connection make it ideal for mobile work.
Processor: CORTEX M7 STM32H735AGI6 up to 550
MHz, 1MB FLASH, 564KB RAM
SRAM: 16 MBits organized in 1024K x 16 bits
eMMC: 8 GByte on an 8-bit bus
External Flash memory: 16 Mbit flash NOR organized as 1M x 16bit
Internal battery:
Lithium polymer, single cell
3.7 V 130 mA/h
LP401429-PCM-LD
Vehicle Battery: 12 Vdc system management
Nominal power supply voltage: OBD: 12 V direct voltage
Wireless communication: Bluetooth 5.0 class1
Operating frequency band: 2402 … 2480 MHz
Maximum radio frequency power transmitted: 10 dBm
Wired connection:
• Virtual COM Via USB Full Speed
• USB C: 5 V *
Electronic switch: 2-way, 13 independent positions
Diagnostic connector: OBD
Supported protocols:
• Blink codes
• K, L (with 60 mA current protection) ISO9141-2, ISO14230
• CAN_FD 11898-2:2016 3 channels
• CAN ISO 11898-3
• CAN SAE J2411 Single Wire
• SAE J1850 PWM e VPW
• Ethernet DoIP ISO13400-3
Power supply connector: OBD
User interface:
• LED RGB x4
• Buzzer
Consumption: 12 V direct voltage , 250 mA
Operating temperature: 0 °C … 40 °C
Storing temperature: -20 °C … 60 °C
Battery charging temperature: 0 °C … 45 °C
Operating moisture: 10% … 80% without condensation
Weight: 72 g
Environmental conditions:
• Use: internal and external
• Altitude: < 2000 m
• Supply voltage fluctuations: ±10%
• Overvoltage category: II
• Pollution degree: 2
• Maximum relative humidity 80% for temperatures up to 31 °C, linearly decreasing to 50% at 40 °C
Directives:
RED 2014/53/EU
RoHS 2011/65/EU and delegated Directive
2015/863/EU
Regulations:
Radio Equipment Regulation 2017 No. 1206
RoHS Regulation 2012 No. 3032
Electromagnetic compatibility:
ETSI EN 301 489-1
ETSI EN 301 489-17
Radio systems: ETSI EN 300 328
Electrical safety:
EN 62368-1
EN 62368-3
EN 62311
