Texa eTruck Diagnostics Module (25 pack)
eTruck is the evolution of remote diagnostics for commercial vehicles!
$7,455.00
🚛 TEXA eTRUCK 25-Pack – Fleet-Wide Remote Diagnostics
The TEXA eTRUCK Diagnostics Module – 25 Pack delivers serious diagnostic firepower for shops and fleets that demand full visibility and control. Monitor, maintain, and manage 25 trucks remotely—reducing downtime, cutting costs, and staying ahead of failures before they happen.
📊 Designed for Fleets That Move Fast
- ✅ Bi-directional functions: DPF regen, resets, parameter viewing
- ✅ Real-time remote fault monitoring and health status
- ✅ Driver communication via iOS/Android app
- ✅ Track service schedules and manage compliance
- ✅ Secure, cloud-based access to vehicles from anywhere
📦 What’s Included:
- 🔹 25x TEXA eTRUCK modules (each assigned to one vehicle VIN)

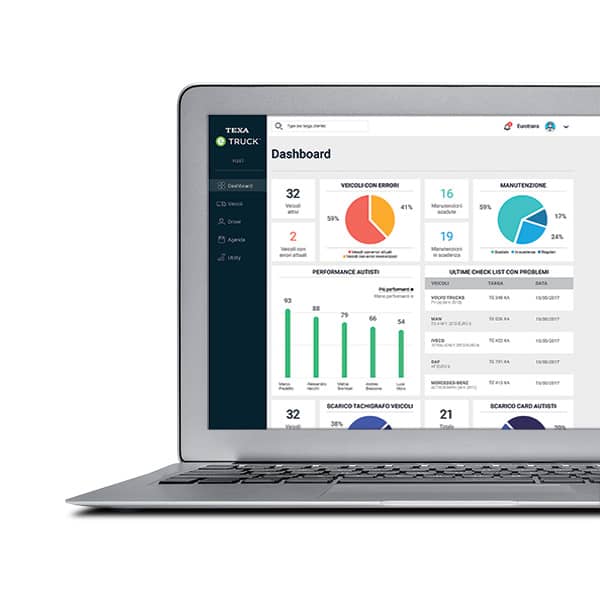

- 🔹 App access and fleet dashboard integration
- 🔹 Full configuration support from Defy Diagnostics
- ⚠️ IDC6 Truck software license required (sold separately)
💡 Eliminate Downtime. Gain Control.
Whether you’re running an in-house fleet or managing client vehicles across a region, eTRUCK gives you technician-grade access—without ever touching the vehicle.
❓ Frequently Asked Questions
A: One module per vehicle. This pack supports 25 unique VINs.
Q: Is the software included?
A: No. You’ll need an active IDC6 Truck license for setup and use.
Q: Can these be re-used?
A: Yes, each module can be reset and reassigned if needed—perfect for changing fleet needs.
Q: Can I use this to run DPF regens remotely?
A: Absolutely. Bi-directional commands like DPF regeneration and parameter resets are supported.
Q: Is this ideal for mobile techs?
A: Definitely. eTRUCK enables you to support vehicles in the field without being on-site.
Features & Benefits
- Ability to view both inactive and active fault codes, along with clearing them from the system.
- Works with all vehicle ECMS – Engine, transmission, ABS, cab controllers.
- View historic driver statistics such as hard brakes, miles driven, fuel economy, and more.
- View live information in real-time such as engine load, fuel level, fuel rate, accelerator position, and many more.
- Set vehicle maintenance reminders and service schedules.
- Perform dealer level commands remotely on your vehicles such as Diesel Particulate Filter (DPF) regenerations.

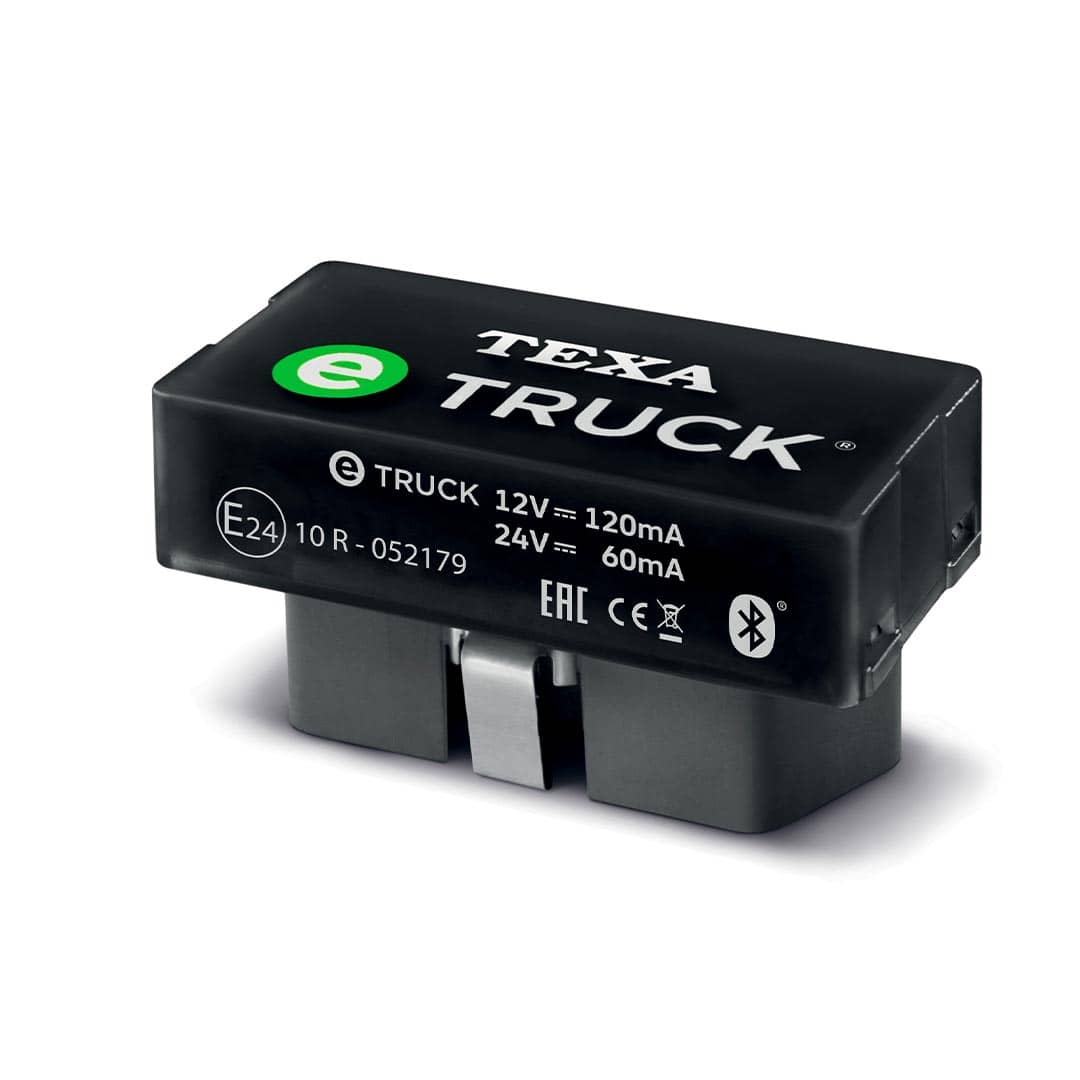

MODEL Texa eTruck
PROCESSOR ARM Cortex M4 (STM32F439ZIY6)
MEMORY SDRAM 8 MB; Flash NAND 4 GB
COMMUNICATION Bluetooth Classic (2.1); Bluetooth 4.0 Low Energy (Smart Ready)
DIAGNOSTIC CONNECTOR Presa OBD ISO15031-03 per sistemi a 24 V
SUPPORTED AUTOMOTIVE BUS TYPE
- 4 HS CAN transceivers connected to OBD pins 3-11, 1-9, 12-13, 6-14 that can be enabled individually;
- 1 J1708 transceiver connected to pins 12-13; 1 ISO9141-2, ISO14230 transceiver with 60mA current protection connected to pins 3 or 7
VISUAL WARNINGS 1 green/red bi-coloured LED; 1 blue LED
INERTIAL SENSOR Accelerometer: 3 axis, ± 16 G F.S.; Gyroscope: 3 axis, ± 2000 DPS G F.S.
SUPPLY VOLTAGE 12 / 24 Vdc
CONSUMPTION Standby < 6 mA Normal mode: 60 / 120 mA (12 / 24 Vdc)
DEVICE ACTIVATION Possible from OBD pins 1 and 8 or by monitoring the battery voltage
OPERATING TEMPERATURE – 20 °C ÷ 70 °C
STORAGE TEMPERATURE – 40 °C ÷ 85 °C
ISM OPERATING FREQUENCY BAND 2400 – 2483.5 MHz
MAXIMUM TRANSMIT POWER IN FREQUENCY BAND 4 dBm
RELATIVE HUMIDITY 10% ÷ 80% without condensation
DIMENSIONS [mm] 47,8*23,4*24,4
WEIGHT 15 g
DIRECTIVES RED 2014 / 53 / EU; ROHS 2011 / 65 / EU
PRODUCT STANDARDS • EN 301 489-1 V2.1.1; • EN 301 489-17 3.1.1; • EN 300 328 V2.1.1; • EN 62479:2010; • EN 60950-1:2006 / A11+A1+A12+AC:2001+A2:2013; • ISO 7637-1:2002; ISO 7637-2:2011
REGULATIONS ECE / ONU R10
WARRANTY 1 year
