Texa Navigator TXT Multihub
The latest generation TEXA Navigator TXT Multihub supports multi-brand diagnostics across all vehicle types. Fast, rugged, and fully future-ready.
$2,600.00
🧠 Navigator TXT Multihub – Universal VCI for All Vehicle Types
The TEXA Navigator TXT Multihub is TEXA’s most advanced multi-brand VCI (Vehicle Communication Interface) to date—designed to power fast, stable, and reliable diagnostics across automotive, truck, OHW, marine, and motorcycle applications. It’s the backbone of every IDC6-based system.
⚙️ Built for the Connected Technician
- ✅ Works with cars, trucks, OHW, bikes, and marine
- ✅ Triple connection: Wi-Fi, USB, and DoIP
- ✅ Fully compatible with IDC6 software (license sold separately)
- ✅ Fast firmware and protocol switching—no lag or downtime

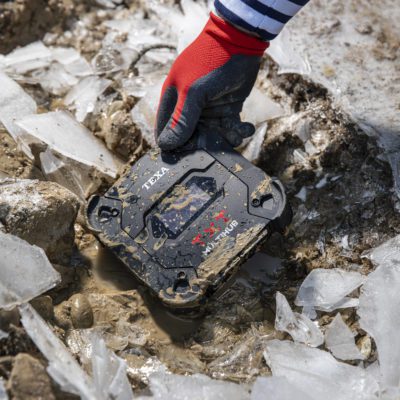

- ✅ IP53-rated for rugged shop and mobile use
- ✅ Future-proofed with secure gateway access and CAN FD support
🛠️ Ideal For:
Shops, mobile techs, fleets, and tech schools looking for a reliable diagnostic backbone across all major vehicle industries.
📦 What’s Included:
- 📶 Navigator TXT Multihub VCI unit
- 🔌 USB cable
- 🔋 Power adapter
- 📖 Quick start documentation
- ⚠️ Note: IDC6 license and cables sold separately
🚀 Maximize Uptime, Minimize Guesswork
With rapid connectivity and full cross-industry coverage, the TXT Multihub 2 makes diagnosis smarter, faster, and more scalable—without the limits of brand-locked systems.
❓ Frequently Asked Questions
A: Cars, heavy trucks, off-highway equipment, marine engines, and motorcycles—one tool for all.
Q: Does it include software?
A: No. An active IDC6 license is required and must be purchased separately.
Q: What’s the difference between TXT Multihub and earlier models?
A: This version adds DoIP, secure gateway support, and improved speed and stability.
Q: Is this suitable for mobile work?
A: Yes! It’s built tough and supports wireless connections for mobile techs.
Q: Can I use this across multiple industries?
A: Absolutely. It’s designed for multi-industry coverage with modular software licensing.
Technical Specifications:
Main processor:
• Type: iMX6 1 GHz
• RAM: 512 MByte
• Mass Storage: eMMC 8 GByte
Coprocessor:
• Type: STM32F439 168 MHz
• RAM: 2 MByte SRAM, 8 MByte SDRAM
• Flash: 2 MByte
Power supply connector: PWR: 2.1 DC jack
Power supply: 12 – 24 Vdc (from vehicle battery via OBD connector or specific wirings)
Consumption: 1 A @12 V max
USB connectors:
• USB: USB 2.0 host type A max 1 A out
• USB DEVICE: USB 2.0 device type B (priority connector)
Bluetooth communication: Bluetooth 5.0 (BDR/EDR/LE)
WiFi communication: WiFi IEEE 802.11 b/g/n 2.4GHz
Operational band: 2400 ÷ 2483.5 MHz
Maximum radio frequency power transmitted: 10 dBm (2400 ÷ 2483,5 MHz)
Diagnostic connectors:
• DIAGNOSIS: DSUB-26HD (ISO 22900-1)
• DoIP: RJ45 (UDP/TCP 13400)
Electronic switch: 2-way, 13 independent positions
Control units reprogramming connector: PV (SAE J2534-1)
User interface: Display OLED 64×128 dot
Operating temperature: 0 – 50 °C
Storage temperature: – 20 – 60 °C
Supported protocols:
• Blink codes
• K, L (with current protection 100 mA), ISO9141-2, ISO14230
• CAN ISO11898-2 High Speed
• Second ISO11898-2 CAN channel
• CAN ISO 11898-3 LOW Speed
• CAN SAE J2411 Single Wire
• SAE J1850 PWM
• SAE J1850 VPW
• SAE J2534-1
• SAE J1708
• UDP/TCP ISO 13400 (DoIP)
Operating moisture: 10 – 80 % without condensation
Dimensions [mm]: 176,1 x 175,4 x 46,8
Weight: 600 g
IP protection level: IP53 * (*) With properly closed protective caps.
Directives:
RoHS 2011/65/UE
RED 2014/53/UE
2015/863/UE
Electromagnetic compatibility:
ETSI EN 301 489-1
ETSI EN 301 489-17
Radio systems: ETSI EN 300 328
Electrical safety:
EN 62638-1/AC:2015
EN 62311:2008
