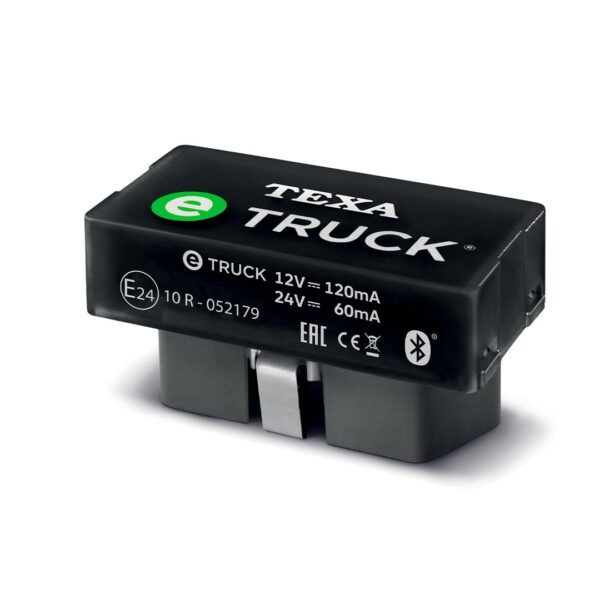

Texa eTruck Diagnostics Module (5 pack)
5-pack of TEXA eTRUCK modules for remote diagnostics, fleet monitoring, and service management. Ideal for fleet managers and mobile techs.
$1,680.00
📡 TEXA eTRUCK 5-Pack – Smarter Fleet Diagnostics, Anywhere
The TEXA eTRUCK 5-Pack gives your shop or fleet a powerful edge with remote diagnostics and real-time vehicle insights. These plug-and-play modules install directly into your trucks, enabling full bi-directional diagnostics, DPF regeneration, maintenance scheduling, and fault tracking—no matter where the vehicle is.
🚛 Fleet-Grade Capabilities
- ✅ Bi-directional diagnostics including DPF resets and regen
- ✅ Remote monitoring of fault codes, parameters, and performance
- ✅ Integrated maintenance tracking & service alerts

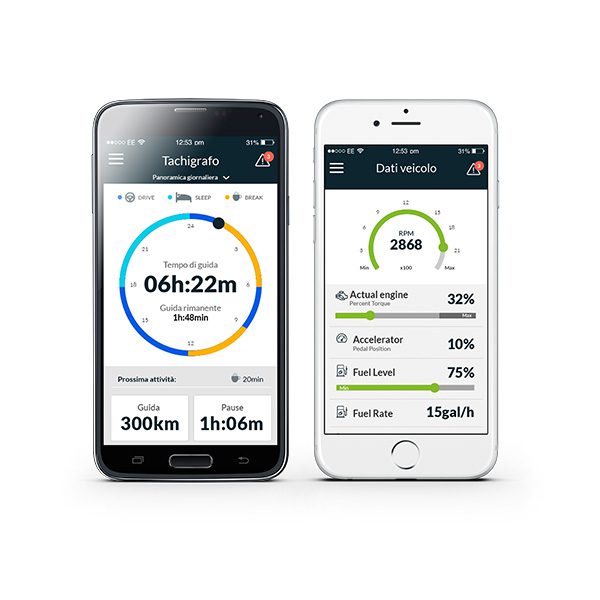

- ✅ Driver app (iOS/Android) for live interaction
- ✅ Ideal for fleet managers, mobile techs & shops managing vehicles off-site
📦 What’s Included:
- 🔹 5x TEXA eTRUCK modules (VIN-locked once paired)
- 🔹 Setup access via IDC6 software (license required)
- 🔹 Fleet configuration support from Defy Diagnostics
- 🔹 Driver mobile app integration (iOS/Android)
🔧 How It Works:
Plug the eTRUCK module into your vehicle’s diagnostic port, pair it with your TEXA software platform, and instantly gain remote access to vehicle data, fault management tools, and real-time system health tracking—even when the truck is on the road.
❓ Frequently Asked Questions
A: Yes. eTRUCK modules require a valid IDC6 Truck license for setup and management.Q: Are these modules reusable?
A: Yes. Once paired to a vehicle’s VIN, they can be reset to be reused.Q: Can I monitor trucks from multiple locations?
A: Yes. eTRUCK is cloud-based and accessible from anywhere through the platform.
Q: Is a mobile app included?
A: Yes. The driver-facing app is free for Android and iOS.
Q: Can this be used for off-site diagnostics?
A: Absolutely. That’s exactly what eTRUCK is built for—remote insight and control.
Features & Benefits
- Ability to view both inactive and active fault codes, along with clearing them from the system.
- Works with all vehicle ECMS – Engine, transmission, ABS, cab controllers.
- View historic driver statistics such as hard brakes, miles driven, fuel economy, and more.
- View live information in real-time such as engine load, fuel level, fuel rate, accelerator position, and many more.
- Set vehicle maintenance reminders and service schedules.
- Perform dealer level commands remotely on your vehicles such as Diesel Particulate Filter (DPF) regenerations.
Technical Specifications:
MODEL: Texa eTRUCK
PROCESSOR: ARM Cortex M4 (STM32F439ZIY6)
MEMORY: SDRAM 8 MB; Flash NAND 4 GB
COMMUNICATION: Bluetooth Classic (2.1); Bluetooth 4.0 Low Energy (Smart Ready)
DIAGNOSTIC CONNECTOR: Presa OBD ISO15031-03 per sistemi a 24 V
SUPPORTED AUTOMOTIVE BUS TYPE
- 4 HS CAN transceivers connected to OBD pins 3-11, 1-9, 12-13, 6-14 that can be enabled individually;
- 1 J1708 transceiver connected to pins 12-13; 1 ISO9141-2, ISO14230 transceiver with 60mA current protection connected to pins 3 or 7
VISUAL WARNINGS: 1 green/red bi-coloured LED; 1 blue LED
INERTIAL SENSOR: Accelerometer: 3 axis, ± 16 G F.S.; Gyroscope: 3 axis, ± 2000 DPS G F.S.
SUPPLY VOLTAGE: 12 / 24 Vdc
CONSUMPTION: Standby < 6 mA Normal mode: 60 / 120 mA (12 / 24 Vdc)
DEVICE ACTIVATION: Possible from OBD pins 1 and 8 or by monitoring the battery voltage
OPERATING TEMPERATURE: – 20 °C ÷ 70 °C
STORAGE TEMPERATURE: – 40 °C ÷ 85 °C
ISM OPERATING FREQUENCY BAND: 2400 – 2483.5 MHz
MAXIMUM TRANSMIT POWER IN FREQUENCY BAND: 4 dBm
RELATIVE HUMIDITY: 10% ÷ 80% without condensation
DIMENSIONS [mm]: 47,8*23,4*24,4
WEIGHT: 15 g
DIRECTIVES: RED 2014 / 53 / EU; ROHS 2011 / 65 / EU
PRODUCT STANDARDS: • EN 301 489-1 V2.1.1; • EN 301 489-17 3.1.1; • EN 300 328 V2.1.1; • EN 62479:2010; • EN 60950-1:2006 / A11+A1+A12+AC:2001+A2:2013; • ISO 7637-1:2002; ISO 7637-2:2011
REGULATIONS: ECE / ONU R10
WARRANTY: 1 year
