Texa Axone Nemo Plus

Texa’s Axone Nemo Plus offers an unrivalled diagnostic experience. Its robustness and reliability ensure a hassle-free use, besides a greater durability than a conventional tablet.

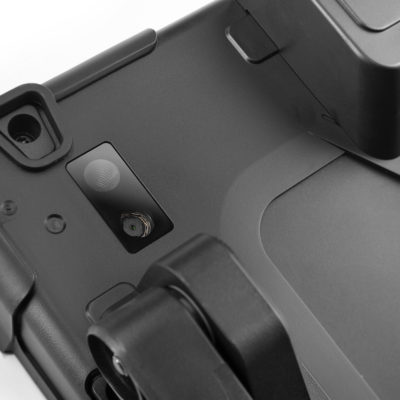

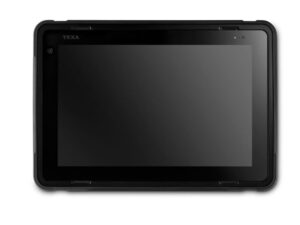

Thanks to its unique features, it is the ideal scanner to improve the efficiency and expand the possibility to operate on any type of vehicle. The Nemo Plus is equipped with the Windows 11 operating system for an unprecedented operability. The Intel® N100 processor, the 16 GB RAM and the 250 GB SSD storage guarantee extraordinary performance and an instant response speed. Thanks to the latest-generation Wi-Fi, it can connect to the company’s Internet network to view online contents. The Bluetooth® 5.3 module provides the flexibility of a rapid connection to the Texa vehicle interfaces. With the built-in camera, it is very easy to capture every detail of the maintenance operations at any moment, to create reports that can be handed over to customers, or technical photos that can be rapidly sent to the technical assistance The Axone Nemo Plus has a high-contrast ultra-wide 11.6-inch display, with a 1920×1080 pixel resolution. This scanner offers a unique and complete viewpoint on the advanced diagnostic functions in the IDC6 software. The wide screen guarantees an optimal display of the diagrams and technical data, providing full visual support for diagnostic and repair operations. The reactive touchscreen allows a smooth navigation between the applications, further simplifying the job. Tailor-made for vehicle repairers, this car scanner takes the diagnostic and repair experience to a higher level, providing clarity, reliability and uncompromising performance. The ergonomic and adjustable handle makes it easier to transport, allowing you to hook it on the vehicle’s steering wheel or to place it on uneven surfaces, always ensuring an optimal visibility of the display. Specs: Model: Texa Axone Nemo Plus Processor: Intel© N100 with optimized heat dissipation thanks to the magnesium body RAM: 16 GB DDR5 Hard Disk: 250 GB SSD with ultra-fast PCIe technology Bios: 64 Mbit Flash ROM, AMI BIOS Operating System: Windows™ 11 IoT Enterprise Trusted Platform Mobile 2.0 Video peripheral devices (built-in): High-contrast ultra-wide view angle display; Dimensions: 11.6” QXGA; Resolution: 1920×1080 pixel; High-sensitivity touch controller; Liquid bonding technology for screen protection and a higher resolution Audio peripheral devices (built-in): 2 speakers 1 MEMS digital microphone Wireless peripheral devices (built-in):

• Wi-Fi: 6E (802.11ax) new generation
• Bluetooth: 5.3 new generation

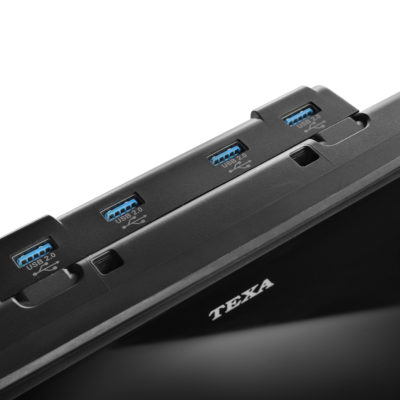

Other functions: ± 8 g 3-axis digital accelerometer I/O peripheral devices: 1 proprietary connector for hub with 4 USB Type-A ports Cameras: 2 Mpixel, LED flash LEDs: 1 green LED (system status) 1 red LED (charging / power supply status) Robustness: Rugged design compliant with MIL- STD 810G (Transit Drop Test) Internal battery: Rechargeable Li-ion 7,2 Vdc; 50,3 Wh; 6990 mAh long-lasting External power supply: From external power adapter

• Input: 100-240 Vac; 1,5 A;47-63 Hz
• Output: 19 V – 3,7 A Absorption: 12 Vdc (4 Adc) – 24 Vdc (2 Adc) Operating temperature: 0 ÷ 40 °

PLEASE NOTE: This tablet requires a software subscription, which is included with the purchase of this tablet. There is a annual renewal that varies depending on the software license purchased. It also requires the use of one of the following VCI’s: Nano S2, Navigator TXB2, Multihub.

Please call us at 864-803-3744 and one of our knowledgeable team members can help guide you through the process and be sure you have everything you need.

Axone-Nemo-Plus-Sales-Flyer
