Texa eTruck Diagnostics Module (5 pack

Texa eTruck module

The evolution of remote diagnostics for commercial trucks is here with eTruck.

$1,680.00

The evolution of remote diagnostics for commercial trucks is here with eTruck.

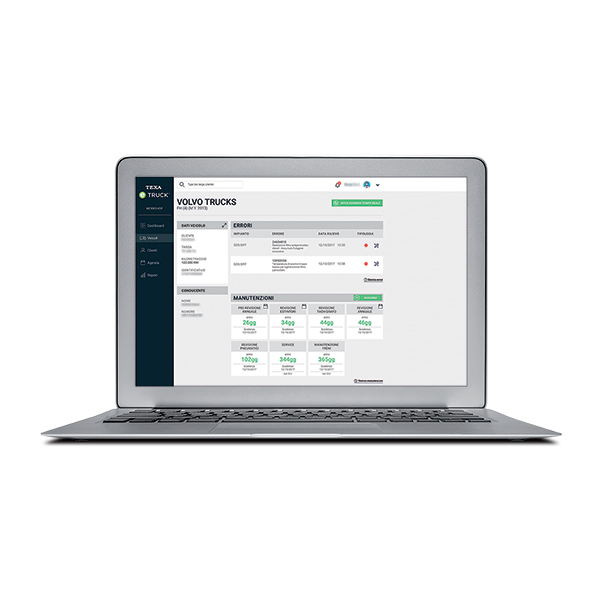

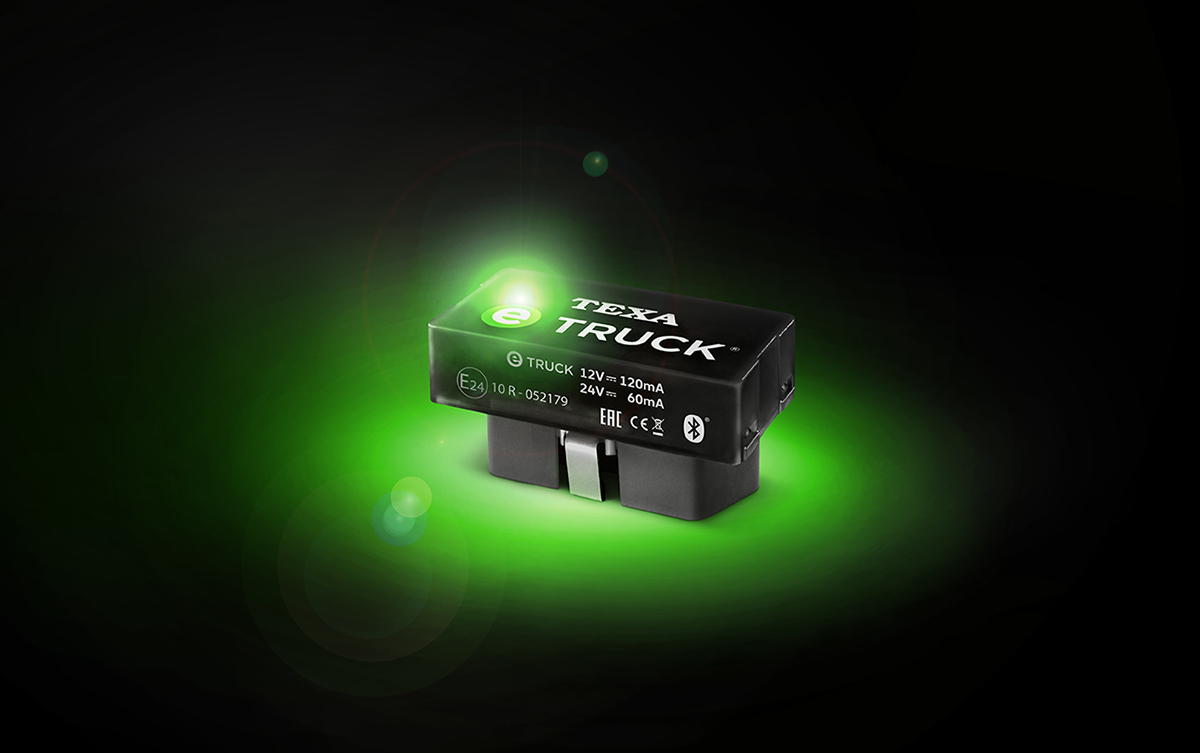

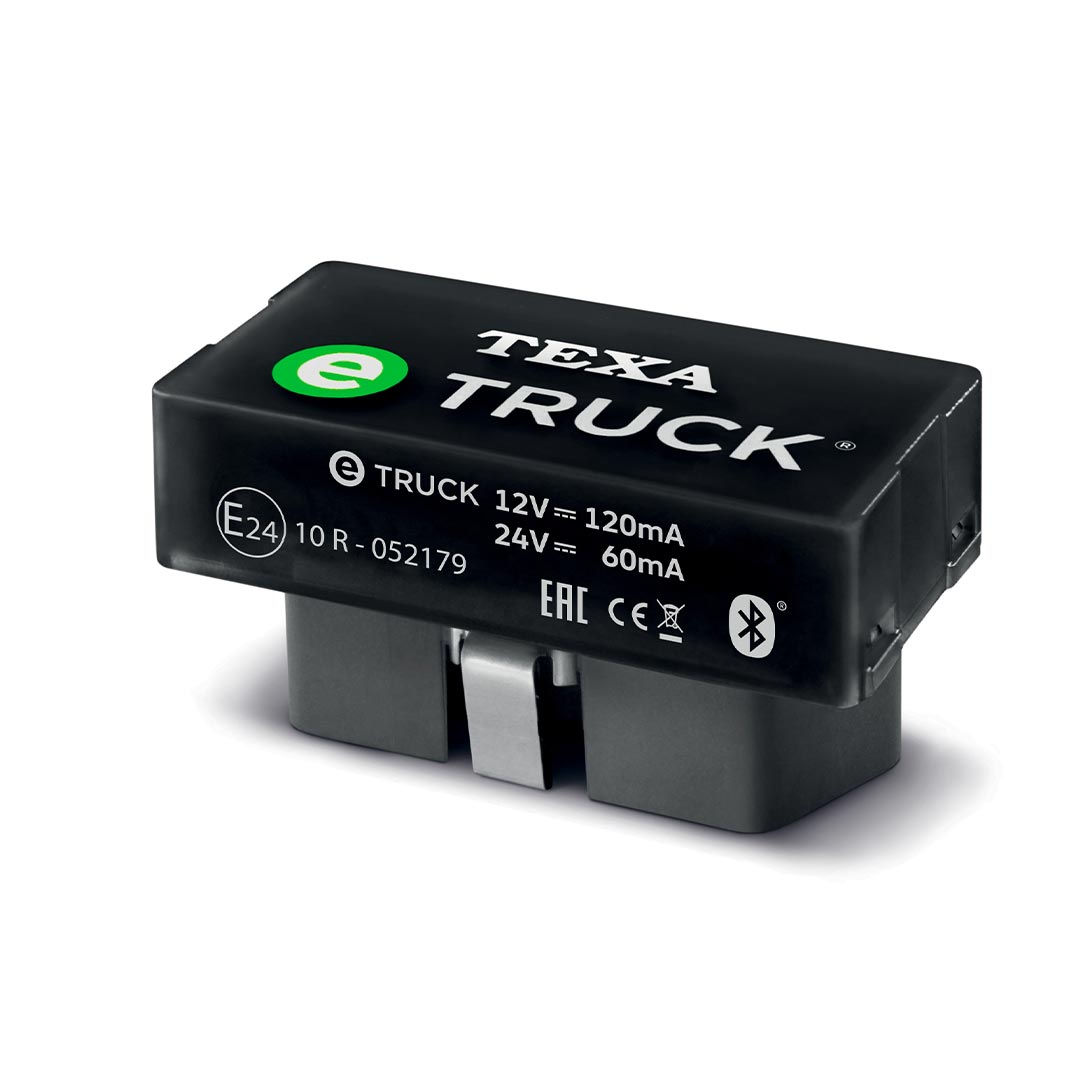

This module is plugged into your existing diagnostic port of your commercial truck, which is then Bluetooth paired with an Internet enabled device such as a tablet or mobile phone. This information is then sent to Texa Workshop, where you are able to take your remote diagnostics to the next level. While other tools on the market allow you to read information from you vehicle, the eTruck is taking it to the next level by providing you with the ability to perform dealer level commands on trucks thousands of miles away.

Features & Benefits

  • Ability to view both inactive and active fault codes, along with clearing them from the system.
  • Works with all vehicle ECMS – Engine, transmission, ABS, cab controllers.
  • View historic driver statistics such as hard brakes, miles driven, fuel economy, and more.

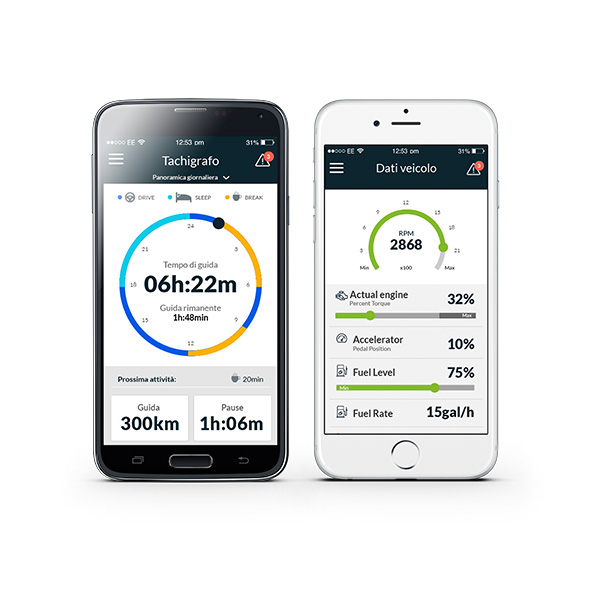

  • View live information in real-time such as engine load, fuel level, fuel rate, accelerator position, and many more.
  • Set vehicle maintenance reminders and service schedules.
  • Perform dealer level commands remotely on your vehicles such as Diesel Particulate Filter (DPF) regenerations.



Technical Specifications

MODEL Texa eTRUCK

PROCESSOR ARM Cortex M4 (STM32F439ZIY6)

MEMORY SDRAM 8 MB; Flash NAND 4 GB

COMMUNICATION Bluetooth Classic (2.1); Bluetooth 4.0 Low Energy (Smart Ready)

DIAGNOSTIC CONNECTOR Presa OBD ISO15031-03 per sistemi a 24 V

SUPPORTED AUTOMOTIVE BUS TYPE

  • 4 HS CAN transceivers connected to OBD pins 3-11, 1-9, 12-13, 6-14 that can be enabled individually;
  • 1 J1708 transceiver connected to pins 12-13; 1 ISO9141-2, ISO14230 transceiver with 60mA current protection connected to pins 3 or 7

VISUAL WARNINGS 1 green/red bi-coloured LED; 1 blue LED

INERTIAL SENSOR Accelerometer: 3 axis, ± 16 G F.S.; Gyroscope: 3 axis, ± 2000 DPS G F.S.

SUPPLY VOLTAGE 12 / 24 Vdc

CONSUMPTION Standby < 6 mA Normal mode: 60 / 120 mA (12 / 24 Vdc)

DEVICE ACTIVATION Possible from OBD pins 1 and 8 or by monitoring the battery voltage

OPERATING TEMPERATURE – 20 °C ÷ 70 °C

STORAGE TEMPERATURE – 40 °C ÷ 85 °C

ISM OPERATING FREQUENCY BAND 2400 – 2483.5 MHz

MAXIMUM TRANSMIT POWER IN FREQUENCY BAND 4 dBm

RELATIVE HUMIDITY 10% ÷ 80% without condensation

DIMENSIONS [mm] 47,8*23,4*24,4

WEIGHT 15 g

DIRECTIVES RED 2014 / 53 / EU; ROHS 2011 / 65 / EU

PRODUCT STANDARDS • EN 301 489-1 V2.1.1; • EN 301 489-17 3.1.1; • EN 300 328 V2.1.1; • EN 62479:2010; • EN 60950-1:2006 / A11+A1+A12+AC:2001+A2:2013; • ISO 7637-1:2002; ISO 7637-2:2011

REGULATIONS ECE / ONU R10

WARRANTY 1 year
