Description

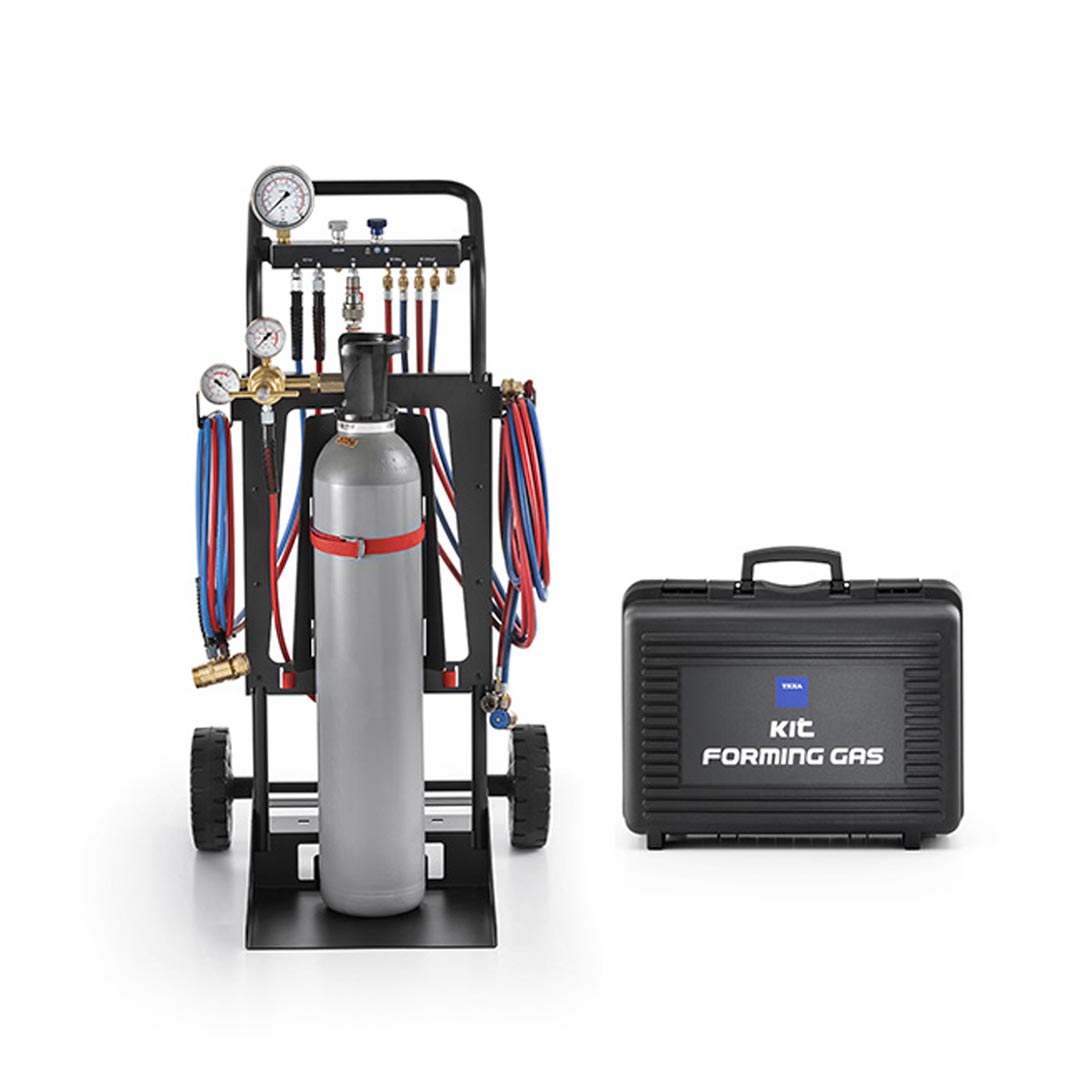

Forming Gas Cart TTF 700
The Forming Gas cart TTF 700 offers a complete and independent solution for leak detection. It is equipped with all the necessary tools to operate on A/C systems that use any type of refrigerant.
– Dimensions: 1180x590x668 mm; Weight: 24.5 kg
– Suitable for A/C systems: R134a, R1234yf, R744
– Forming Gas tanks* supported up to 20 L
– Maximum pressure: 20 bar for R134a and R1234yf; 100 bar for R744
– Equipped with safety valve that opens completely in case the operating value is reached
– Manometer 100 bar, 100 mm CL1
– Service hoses: R134a (LP/HP) 3 m; R1234yf (LP/HP) 2.5 m; R744 (LP/HP) 2.5 m; Forming Gas tank 2.5 m
– Forming Gas tank pressure reducer: input operating pressure max 300 bar; output pressure max 100 bar
– Safety belt to secure the tank to the cart
– Forming Gas case (can also be sold separately)

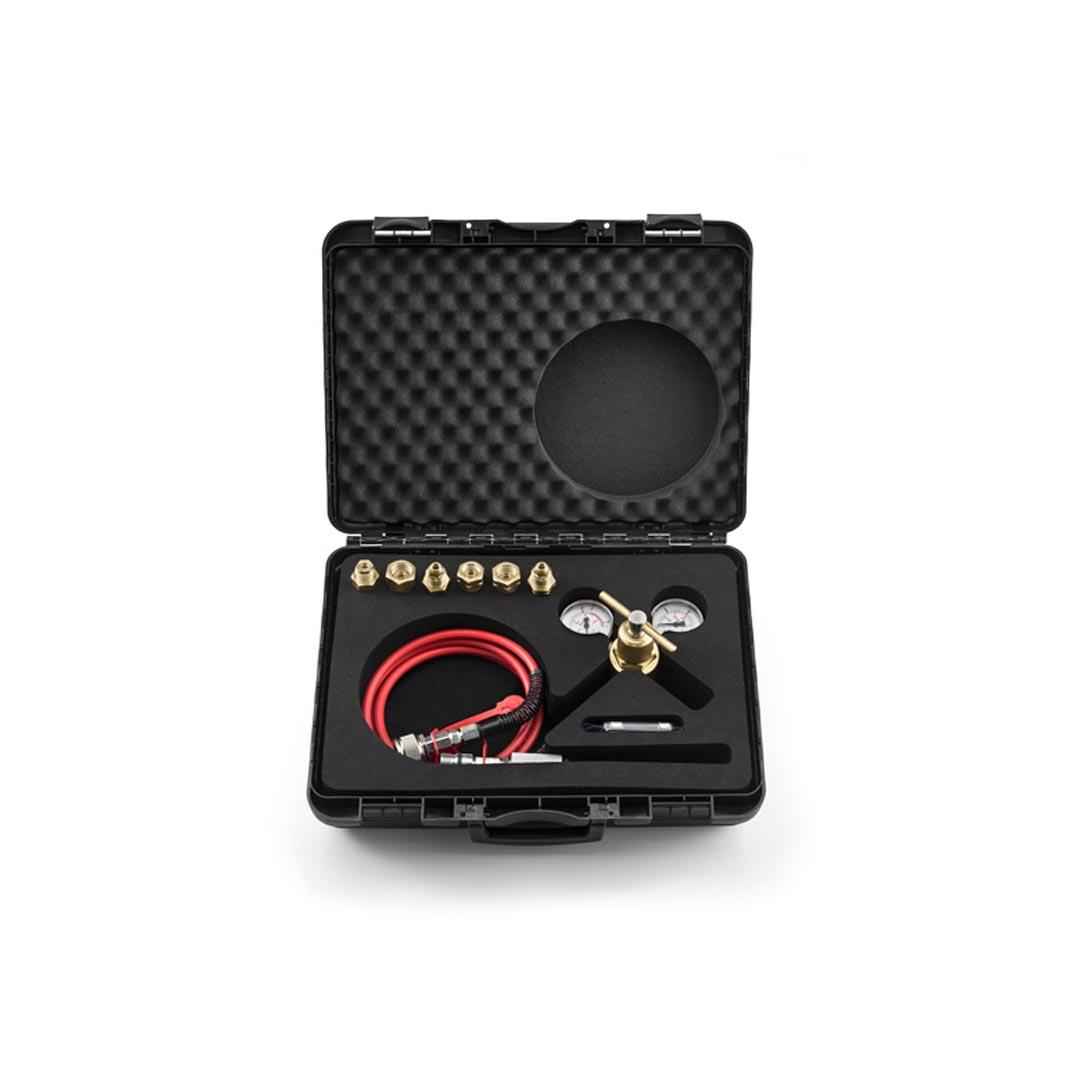

The Forming Gas case, included in the purchase of the Forming Gas cart TTF 700 as part of its instrumentation, it can also be purchased separately to support the KONFORT A/C recharge stations (760R, 760R BUS, 770S, 780R and 744) in the leak detection.
– Dimensions: 470x350x190 mm; Weight: 7 kg
– Set of adapters for the coupling of the Forming Gas tank
– Forming Gas tank pressure reducer: input operating pressure 300 bar max, output 100 bar max
– Connection kit for KONFORT 744 including: Forming Gas quick coupler, 2500-mm flexible hose for high pressure connection
– Connection kit for KONFORT 760R, 760R BUS, 770S and 780R including: 150 mm hose, evacuation valve, safety valve
– Teflon seals
